Low-Voltage Main Distribution
ML-FPS400400 V Fixed-Partition Low-Voltage Switchgear
Compartmentalized fixed-pattern assembly for low-voltage main and feeder distribution.
Image 1 of 1: Complete product view
For controlled power distribution
Fixed-partition LV switchgear
ML-FPS400 uses fixed-partition construction to organize main and distribution functions. The final form of separation, busbar duty and device arrangement are confirmed against the project requirements.
- 01Fixed-partition construction
- 02Defined main and distribution busbar references
- 03Project-specific separation and interface review
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
Typical applications
Industrial distributionInfrastructureCommercial facilitiesUtility auxiliary systems
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
Model-linked reports and independently prepared English reading guides are available below. Check the original model, current range, construction, standards and individual test scope. A change or reissue document is not a new full retest; catalogue values are not blanket certification for the range.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Catalogue reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
System voltage / frequency400 V / 50 Hz
Main busbar current1600-4000 A
Short-time withstand current80 kA
Distribution busbar current400-1000 A
Distribution busbar withstand50 kA
Rated insulation voltageUi 690 V
Degree of protectionIP41 / IP40 / IP31 / IP30
ConstructionFixed-partition switchgear
Outline and dimensions
Reference envelope for early layout work
Typical reference panel: 800 W x 1000 D x 2200 H mm

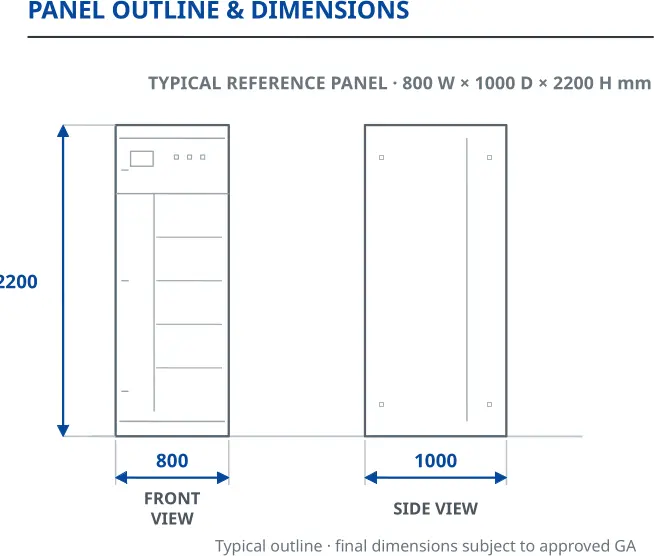

Final dimensions are subject to the approved general arrangement.Drawing views: Front View · Side View
