Low-Voltage Main Distribution
ML-HCW400400 V High-Current Low-Voltage Withdrawable Switchgear
High-current withdrawable low-voltage assembly for demanding main distribution duties.
Image 1 of 1: Complete product view
For controlled power distribution
High-current LV withdrawable switchgear
ML-HCW400 addresses higher-current low-voltage main distribution with a withdrawable platform and documented reference busbar duties. Final thermal, short-circuit and ventilation design is coordinated with the project arrangement.
- 01High-current main busbar platform
- 02Withdrawable functional-unit arrangement
- 03Project-specific thermal and feeder coordination
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
Typical applications
High-current industrial distributionProcess facilitiesInfrastructureUtility auxiliary systems
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
Model-linked reports and independently prepared English reading guides are available below. Check the original model, current range, construction, standards and individual test scope. A change or reissue document is not a new full retest; catalogue values are not blanket certification for the range.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Catalogue reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
System voltage / frequency400 V / 50 Hz
Main busbar current4000-6300 A
Short-time withstand current100 kA
Distribution busbar current400-1250 A
Distribution busbar withstand50 kA
Rated insulation voltageUi 690 V
Degree of protectionIP41 / IP40 / IP31 / IP30
ConstructionHigh-current withdrawable assembly
Outline and dimensions
Reference envelope for early layout work
Typical reference panel: 1000 W x 1000 D x 2200 H mm

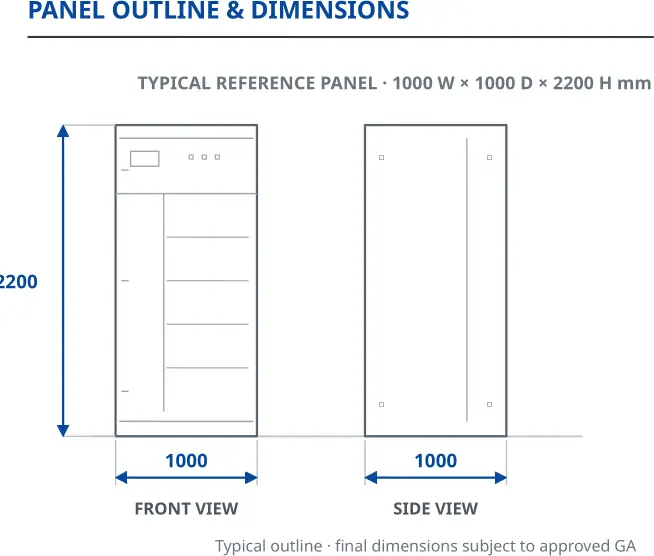

Final dimensions are subject to the approved general arrangement.Drawing views: Front View · Side View
Find out more
Technical resources
Read the original model, report scope and English explanation together. You can explore the documents before deciding whether to discuss a project.
Standard-change / descriptive verification report
GCS low-voltage assembly - report chain
Corresponding range: ML-HCW400 →What this report covers
- Physical source page 3 states that this descriptive verification report must be used together with C-14201-DC193996.
- The original temperature-rise test used three 60/65 W axial fans (W2E20060HA3) operating below the incoming air circuit-breaker; see physical source page 3. Do not describe the 6300 A reference as naturally ventilated.
- LV-021 is another scan of the same report, not another independent test.
- The website model is a commercial family name; the original laboratory model and tested arrangement remain controlling.
- This is a Chinese GB/T report, not an IEC certificate or a blanket qualification of every offered configuration.
- Pass, inherited pass, document-review pass and N (not applicable or not tested) are kept distinct.
- Report scope has been reviewed against selected identity, change and result pages. A physical-page count alone is not a page-by-page completeness or authenticity audit.
4 guide pages + 73 source pages · 19.5 MB
