Product family

Secondary MV Distribution

Ring main units and fixed metal-enclosed switchgear for compact secondary-distribution schemes.

Available platforms

12 kV RMU platforms

This family covers ring main units and fixed metal-enclosed switchgear for compact secondary-distribution schemes. Ratings, insulation architecture, protection and interfaces are confirmed against approved project documents.

Minglang 12 kV ring main unit, three-panel compact lineup

Family-level selection

12 kV RMU platforms

This family covers ring main units and fixed metal-enclosed switchgear for compact secondary-distribution schemes. Ratings, insulation architecture, protection and interfaces are confirmed against approved project documents.

Discuss this product family

Explore the evidence

Reports for identified models in this family

See the reported model and rating before opening a document. A family association is a navigation aid, not evidence that a report covers every product shown here.

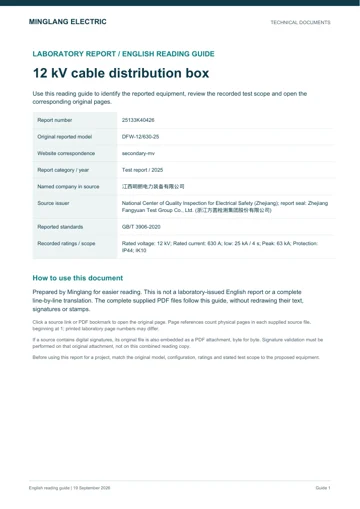

English guide cover for report 25133K40426
Test report

12 kV cable distribution box

Original reported model
DFW-12/630-25
Report / year
25133K40426 · 2025
Recorded reference
Rated voltage: 12 kV; Rated current: 630 A; Icw: 25 kA / 4 s; Peak: 63 kA; Protection: IP44; IK10
Standards stated in the report
GB/T 3906-2020
Explore this product family (not a model-equivalence claim) →
What this report covers
  • This is an independently prepared English reading guide, not an English report issued by the test laboratory. The complete Chinese original follows unchanged and governs interpretation.
  • Results apply to the submitted sample, stated configuration, test conditions and listed tests only. They are not a blanket certificate for all Minglang products or all project requirements.
  • Marketing product names identify a website range; the source report model, ratings and configuration must be matched before the evidence is used for an order.
  • This is a medium-voltage DFW cable box, not the 400 V DFW variants in the same source folder. Do not transfer its 25 kA rating to a low-voltage product.
  • There is no internal-arc test in the nine-item report summary. Do not add an IAC claim.
Preview PDF Download guide + original

3 guide pages + 26 source pages · 2.2 MB
