Low-Voltage Main Distribution
ML-FDS400400 V Fixed Low-Voltage Distribution Switchboard
Fixed low-voltage switchboard for conventional main and feeder distribution.
Image 1 of 1: Complete product view
For controlled power distribution
Fixed LV distribution switchboard
ML-FDS400 provides a fixed-pattern low-voltage distribution platform for straightforward main and feeder applications. Circuit arrangement, component selection and enclosure configuration are released against the approved schedule.
- 01Fixed-pattern distribution construction
- 02Broad published main-busbar range
- 03Compact reference depth
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
Typical applications
Industrial distributionInfrastructureCommercial buildingsUtility auxiliary systems
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
Model-linked reports and independently prepared English reading guides are available below. Check the original model, current range, construction, standards and individual test scope. A change or reissue document is not a new full retest; catalogue values are not blanket certification for the range.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Catalogue reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
System voltage / frequency400 V / 50 Hz
Main busbar current400-4000 A
Short-time withstand current80 kA
Rated insulation voltage690 V
Enclosure protectionIP41 / IP40
Rated insulation voltageUi 690 V
Degree of protectionIP41 / IP40 / IP31 / IP30
ConstructionFixed low-voltage switchboard

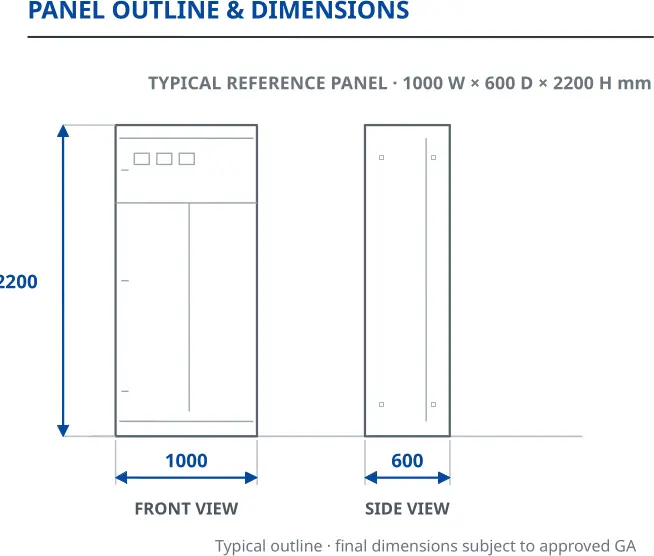

Outline and dimensions
Reference envelope for early layout work
Typical reference panel: 1000 W x 600 D x 2200 H mm
Final dimensions are subject to the approved general arrangement.Drawing views: Front View · Side View
Find out more
Technical resources
Read the original model, report scope and English explanation together. You can explore the documents before deciding whether to discuss a project.
Standard-change / descriptive verification report
GGD low-voltage assembly - report chain
Corresponding range: ML-FDS400 →What this report covers
- Physical source page 3 states that this descriptive verification report must be used together with C-14201-DC197420.
- The website model is a commercial family name; the original laboratory model and tested arrangement remain controlling.
- This is a Chinese GB/T report, not an IEC certificate or a blanket qualification of every offered configuration.
- Pass, inherited pass, document-review pass and N (not applicable or not tested) are kept distinct.
- Report scope has been reviewed against selected identity, change and result pages. A physical-page count alone is not a page-by-page completeness or authenticity audit.
4 guide pages + 95 source pages · 37.4 MB
Product questions
Get familiar with this product
What is the published reference for ML-FDS400?
The page lists the catalogue reference configuration for ML-FDS400. Final ratings and interfaces remain subject to the approved project documents.
Are the published dimensions fixed for every project?
No. The dimensions are a documented reference envelope. Final width, depth, height and lineup arrangement depend on the selected devices, ratings, cable interfaces and approved general arrangement.
What evidence can be requested?
Model-linked reports and independently prepared English reading guides are available below. Check the original model, current range, construction, standards and individual test scope. A change or reissue document is not a new full retest; catalogue values are not blanket certification for the range.
