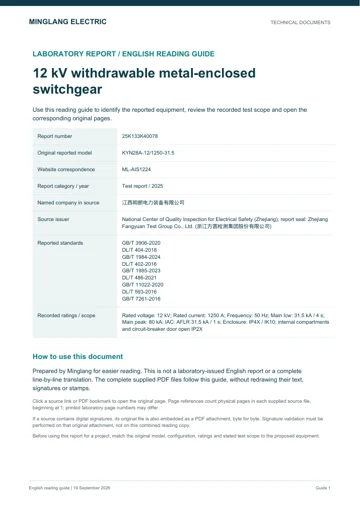

Test report
12 kV withdrawable metal-enclosed switchgear
Corresponding range: ML-AIS1224 →What this report covers
- This is an independently prepared English reading guide, not an English report issued by the test laboratory. The complete Chinese original follows unchanged and governs interpretation.
- Results apply to the submitted sample, stated configuration, test conditions and listed tests only. They are not a blanket certificate for all Minglang products or all project requirements.
- Marketing product names identify a website range; the source report model, ratings and configuration must be matched before the evidence is used for an order.
- Applies to the 12 kV / 1250 A / 31.5 kA configuration only. This report does not substantiate 24 kV or 40.5 kV variants.
- The component circuit-breaker report 25K133K40079 is separate evidence; it does not replace assembly verification.
- Source p5 lists earthing-circuit duration 2 s, while summary p7 prints 4 s. Obtain clarification before using that particular earthing rating. Main-circuit and IAC values above are separately traceable.
- Source p9 identifies different samples for different tests. This is not a claim that every test was performed on one physical cabinet.
4 guide pages + 335 source pages · 32.3 MB
