ML-MCC400400 V Low-Voltage Withdrawable Switchgear and Motor Control Centre
Withdrawable low-voltage platform for mixed power-distribution and motor-control applications.
Image 1 of 1: Complete product view
For controlled power distribution
LV switchgear and motor control centre
ML-MCC400 combines low-voltage distribution and motor-control functions within a withdrawable assembly. Feeder duties, motor starting, protection and control interfaces are confirmed circuit by circuit.
- 01Mixed power and motor-control duties
- 02Withdrawable functional-unit arrangement
- 03Feeder-level protection and control configuration
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
Typical applications
ManufacturingProcess industriesWater systemsBuilding services
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
The available GCK report chain is being checked for a report-number prefix discrepancy. Ask us for the applicable documents; it is not shown here as a verified combined report chain. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Catalogue reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
System voltage / frequency400 V / 50 Hz
Main busbar current1600-4000 A
Short-time withstand current80 kA
Distribution busbar current400-1000 A
Distribution busbar withstand50 kA
Rated insulation voltageUi 690 V
Degree of protectionIP41 / IP40 / IP31 / IP30
ConstructionWithdrawable switchgear and MCC

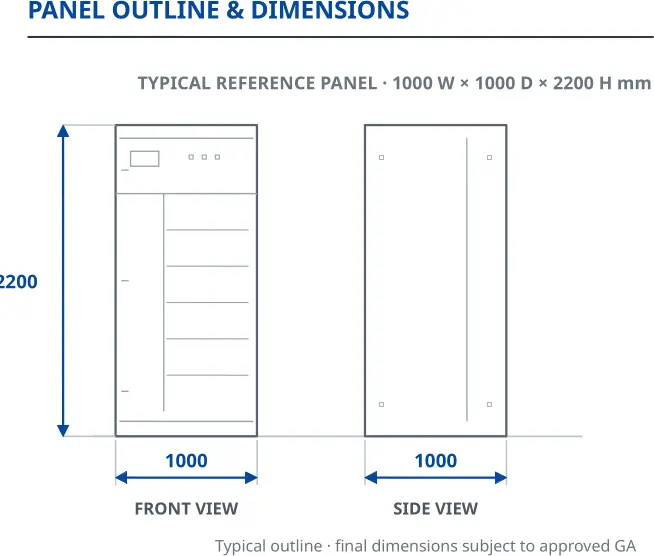

Outline and dimensions
Reference envelope for early layout work
Typical reference panel: 1000 W x 1000 D x 2200 H mm
Final dimensions are subject to the approved general arrangement.Drawing views: Front View · Side View
Find out more
Technical resources
Read the original model, report scope and English explanation together. You can explore the documents before deciding whether to discuss a project.
The available GCK report chain is being checked for a report-number prefix discrepancy. Ask us for the applicable documents; it is not shown here as a verified combined report chain.
Product questions
Get familiar with this product
What is the published reference for ML-MCC400?
The page lists the catalogue reference configuration for ML-MCC400. Final ratings and interfaces remain subject to the approved project documents.
Are the published dimensions fixed for every project?
No. The dimensions are a documented reference envelope. Final width, depth, height and lineup arrangement depend on the selected devices, ratings, cable interfaces and approved general arrangement.
What evidence can be requested?
The available GCK report chain is being checked for a report-number prefix discrepancy. Ask us for the applicable documents; it is not shown here as a verified combined report chain. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
