Low-Voltage Main Distribution
ML-MPS400400 V Standardized Low-Voltage Switchboard
Standardized low-voltage assembly for repeatable power-distribution and control arrangements.
Image 1 of 1: Complete product view
For controlled power distribution
Standardized LV switchboard
ML-MPS400 provides a standardized platform with defined main, feeder and control-busbar references. It supports repeatable project arrangements while allowing circuit-level devices and interfaces to be engineered for the application.
- 01Standardized modular arrangement
- 02Separate feeder and control-busbar reference
- 03Defined enclosure and ventilation protection
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
Typical applications
InfrastructureCommercial buildingsIndustrial distributionStation auxiliary systems
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
SLVA distribution and compensation assemblies have different report scopes. The linked distribution reports must not be used to claim compensation-assembly performance, or vice versa. The linked Fangyuan distribution report covers the 2500 A configuration; the catalogue's 2000 A option is not independently established by that 2500 A report. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Catalogue reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
System voltage / frequency400 V / 50 Hz
Catalogue main busbar current (linked report: 2500 A)2000 / 2500 A
Short-time withstand current65 kA
Feeder / control busbar1600 A
Feeder busbar withstand50 kA
Rated insulation voltageUi 1000 V incoming/feeder - 690 V control
Degree of protectionIP4X enclosure - IP3XD ventilation
ConstructionStandardized modular assembly
Outline and dimensions
Reference envelope for early layout work

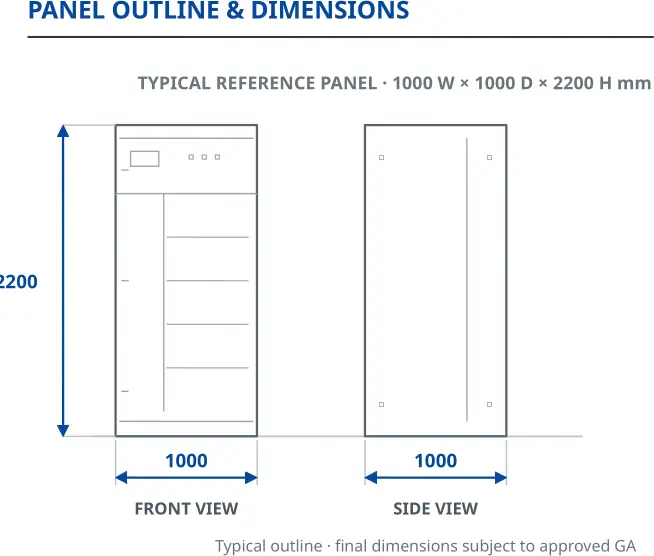

Typical reference panel: 1000 W x 1000 D x 2200 H mm
Final dimensions are subject to the approved general arrangement.Drawing views: Front View · Side View
