Primary MV Switchgear
ML-AIS122412/24 kV Air-Insulated Metal-Enclosed Withdrawable Switchgear
Indoor primary distribution switchgear with documented 12 kV reference ratings and a 24 kV product platform.
Image 1 of 2: Complete product view
For controlled power distribution
12/24 kV primary MV switchgear
ML-AIS1224 combines air-insulated metal-enclosed construction with a withdrawable device arrangement for utility, industrial, infrastructure and renewable-energy distribution. Published values define the catalogue reference; the offered configuration is confirmed against approved project documents.
- 01Withdrawable switching-device arrangement
- 02Documented internal-arc reference classification
- 03Defined insulation, enclosure and endurance references
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
ApplicationUtility & Power NetworksExplore →ApplicationRenewable Energy & StorageExplore →ApplicationTransport & InfrastructureExplore →ApplicationCommercial & Public BuildingsExplore →
Typical applications
Utility distributionIndustrial facilitiesInfrastructureRenewable energy and storage
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
The linked KYN28A-12 report covers the stated 12 kV configuration. It does not establish 24 kV or 40.5 kV performance. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Documented reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
Rated voltage / frequency12 / 24 kV - 50 Hz
Rated current (12 kV reference)1250 A
Main-circuit short-time withstand (12 kV report)31.5 kA / 4 s
Main-circuit peak withstand (12 kV report)80 kA
Internal arc (12 kV reference)IAC AFLR - 31.5 kA / 1 s
12 kV insulation levels42/48 kV - 75/85 kV
24 kV catalogue insulation (not report-verified)65/79 kV - 125/145 kV
Protection (12 kV report reference)IP4X enclosure - IP2X with CB compartment open
Impact resistance (12 kV report reference)IK10
12 kV endurance classesCircuit-breaker E2/M2 - earthing switch E2/M1

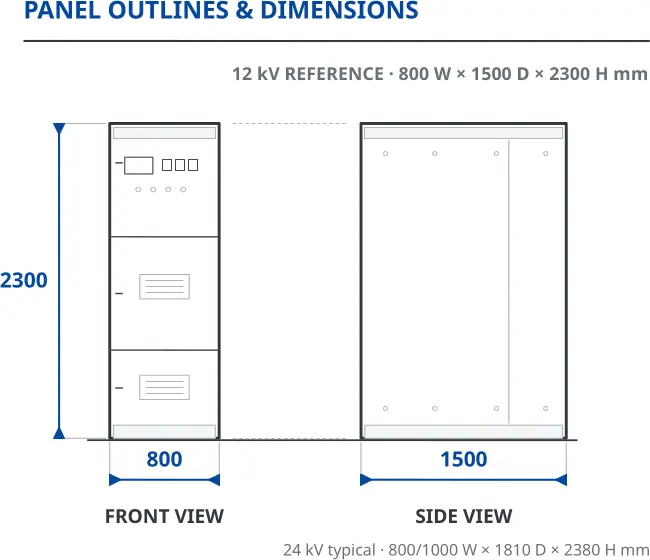

Outline and dimensions
Reference envelope for early layout work
12 kV reference: 800 W x 1500 D x 2300 H mm; 24 kV typical: 800/1000 W x 1810 D x 2380 H mm
Final dimensions are subject to the approved general arrangement.Drawing views: Front View · Side View
Find out more
Technical resources
Read the original model, report scope and English explanation together. You can explore the documents before deciding whether to discuss a project.
The linked KYN28A-12 report covers the stated 12 kV configuration. It does not establish 24 kV or 40.5 kV performance.
Test report
12 kV withdrawable metal-enclosed switchgear
Corresponding range: ML-AIS1224 →What this report covers
- This is an independently prepared English reading guide, not an English report issued by the test laboratory. The complete Chinese original follows unchanged and governs interpretation.
- Results apply to the submitted sample, stated configuration, test conditions and listed tests only. They are not a blanket certificate for all Minglang products or all project requirements.
- Marketing product names identify a website range; the source report model, ratings and configuration must be matched before the evidence is used for an order.
- Applies to the 12 kV / 1250 A / 31.5 kA configuration only. This report does not substantiate 24 kV or 40.5 kV variants.
- The component circuit-breaker report 25K133K40079 is separate evidence; it does not replace assembly verification.
- Source p5 lists earthing-circuit duration 2 s, while summary p7 prints 4 s. Obtain clarification before using that particular earthing rating. Main-circuit and IAC values above are separately traceable.
- Source p9 identifies different samples for different tests. This is not a claim that every test was performed on one physical cabinet.
4 guide pages + 335 source pages · 32.3 MB
Product questions
Get familiar with this product
What is the published reference for ML-AIS1224?
The page lists the catalogue reference configuration for ML-AIS1224. Final ratings and interfaces remain subject to the approved project documents.
Are the published dimensions fixed for every project?
No. The dimensions are a documented reference envelope. Final width, depth, height and lineup arrangement depend on the selected devices, ratings, cable interfaces and approved general arrangement.
What evidence can be requested?
The linked KYN28A-12 report covers the stated 12 kV configuration. It does not establish 24 kV or 40.5 kV performance. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
