ML-ODC400400 V Outdoor Integrated Distribution Cabinet with Metering
Outdoor low-voltage distribution cabinet integrating metering and compensation functions.
Image 1 of 2: Complete product view
For controlled power distribution
Outdoor distribution and metering cabinet
ML-ODC400 combines outdoor distribution, metering and reactive-power compensation within one enclosure. Circuit arrangement, metering boundaries and compensation capacity are matched to the transformer and downstream scheme.
- 01Integrated outdoor distribution and metering
- 02IP45 reference enclosure
- 03Hybrid compensation with harmonic suppression
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
Typical applications
Utility distributionUrban distributionResidential distributionTransformer outgoing distribution
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
The available JP report chain is being reviewed because an earlier-report identifier needs clarification. It is not published here as a verified combined report chain. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Catalogue reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
System voltage / frequency400 V / 50 Hz
Main busbar current50-800 A
Short-time withstand current30 kA
Compensation capacity10-240 kvar
Enclosure protectionIP45
Rated insulation voltageUi 690 V
Compensation configurationHybrid compensation with harmonic suppression
InstallationOutdoor enclosure
Outline and dimensions
Reference envelope for early layout work
Typical 100-400 kVA reference: 1100 W x 600 D x 800 H mm

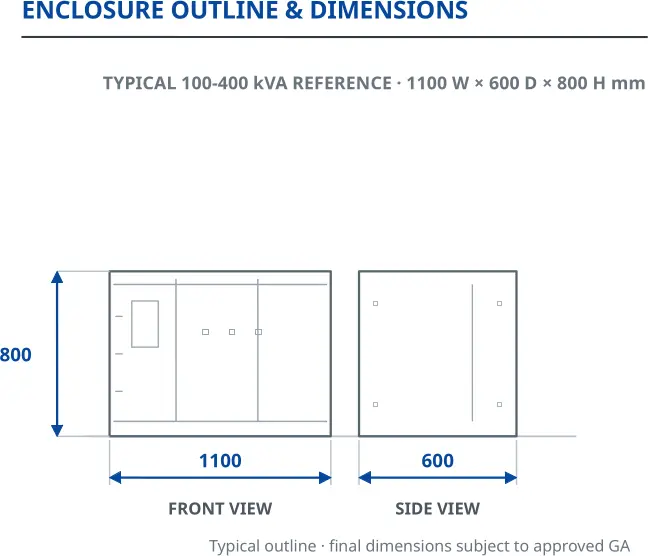

Final dimensions are subject to the approved general arrangement.Drawing views: Front View · Side View
