Final Distribution & Busbar
ML-MME400400/230 V Multi-Meter Energy Metering Enclosure
Indoor multi-position metering enclosure for low-voltage multi-user distribution.
Image 1 of 2: Complete product view
For controlled power distribution
Multi-meter energy metering enclosure
ML-MME400 organizes multi-user energy metering within a metal enclosure. Meter positions, incoming arrangement, outgoing circuits and utility interfaces are configured for the approved distribution scheme.
- 01Multi-position metering arrangement
- 02IP44 enclosure reference
- 03Accessible multi-user distribution layout
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
Typical applications
Residential distributionCommercial buildingsUrban renewalMulti-user metering
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
The catalogue reference for ML-MME400 is BXD2. Reports for other metering-box models are listed separately at family level; they are not presented as BXD2 evidence. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Catalogue reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
System voltage / frequency400/230 V - 50 Hz
Rated current range10-250 A
Short-time withstand current10 kA
Rated insulation voltage690 V
Enclosure protectionIP44
Operating faceIP20C
InstallationIndoor metal metering enclosure
Reference arrangement12-position enclosure

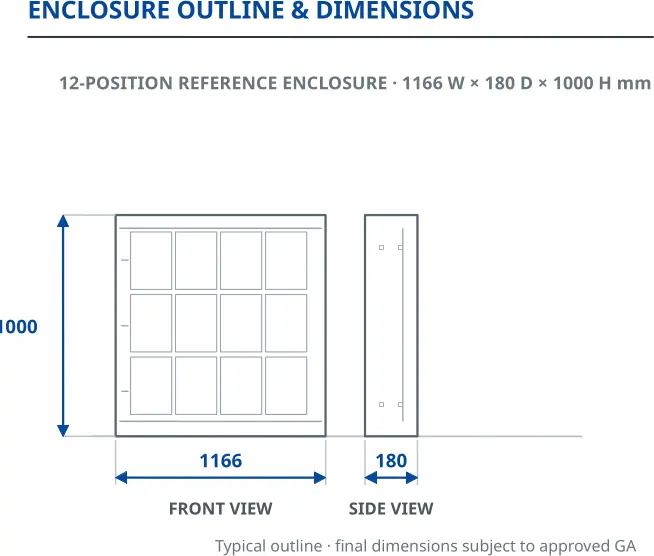

Outline and dimensions
Reference envelope for early layout work
12-position reference enclosure: 1166 W x 180 D x 1000 H mm
Final dimensions are subject to the approved general arrangement.Drawing views: Front View · Side View
Find out more
Technical resources
Read the original model, report scope and English explanation together. You can explore the documents before deciding whether to discuss a project.
The catalogue reference for ML-MME400 is BXD2. Reports for other metering-box models are listed separately at family level; they are not presented as BXD2 evidence.
Product questions
Get familiar with this product
What is the published reference for ML-MME400?
The page lists the catalogue reference configuration for ML-MME400. Final ratings and interfaces remain subject to the approved project documents.
Are the published dimensions fixed for every project?
No. The dimensions are a documented reference envelope. Final width, depth, height and lineup arrangement depend on the selected devices, ratings, cable interfaces and approved general arrangement.
What evidence can be requested?
The catalogue reference for ML-MME400 is BXD2. Reports for other metering-box models are listed separately at family level; they are not presented as BXD2 evidence. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
