Final Distribution & Busbar
ML-BTS400Low-Voltage Busbar Trunking System
Compact low-voltage power-routing system with project-defined straight lengths and tap-off access.
Image 1 of 1: Complete product view
For controlled power distribution
Low-voltage busbar trunking system
ML-BTS400 routes low-voltage power through standardized straight lengths with tap-off access. Current rating, route, joints, supports, fire boundaries and connection interfaces are coordinated from the approved layout.
- 01Compact high-current power routing
- 02Flexible tap-off access
- 03Defined enclosure protection with and without tap-off units
Applications
Where this platform supports the distribution system
Application pages connect operating priorities and equipment-selection considerations to the relevant Minglang product platforms.
ApplicationRenewable Energy & StorageExplore →ApplicationIndustrial ManufacturingExplore →ApplicationCommercial & Public BuildingsExplore →
Typical applications
Industrial facilitiesCommercial buildingsInfrastructureMain-to-final distribution links
Customer benefits
Get to know the product and its documentation
Explore how the equipment is used, review the published reference data, and ask our team about anything you would like to understand.
Ask about the configuration
Ask our team about the enclosure, devices, interfaces and ratings before deciding whether this product is relevant to your application.
Review the evidence
A same-model CC4 busbar-trunking report is not included in the reviewed public library. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
Understand the next steps
If you choose to explore a project, we can explain the drawings, inspection records and final documentation associated with the proposed configuration.
Technical data
Catalogue reference configuration
Published values describe the catalogue range; they are not a claim that every configuration has been tested. Model-specific evidence is identified in the resources below. When you need a selection, our team can help confirm the configuration and its documentation.
Operational voltage400 / 1000 V
Main busbar current1600-4000 A
Short-time withstand current80 kA
Tap-off unit current20-315 A
Tap-off short-circuit rating15 kA
Rated insulation voltageUi 690 V with tap-off - 1000 V without tap-off
Degree of protectionIP54 with tap-off - IP66 without tap-off
Safety characteristicFlame-propagation prevention characteristic
Outline and dimensions
Reference envelope for early layout work

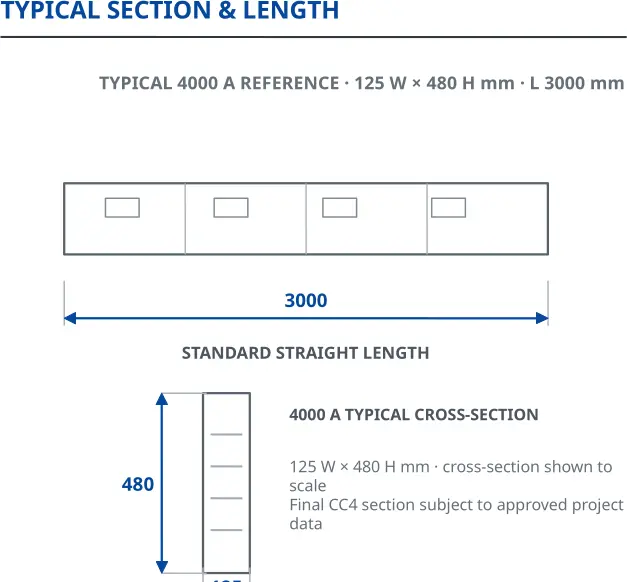

Typical 4000 A reference section: 125 W x 480 H mm; standard straight length 3000 mm
Final dimensions are subject to the approved general arrangement.Drawing views: Cross-Section · Standard Straight Length
Find out more
Technical resources
Read the original model, report scope and English explanation together. You can explore the documents before deciding whether to discuss a project.
Product questions
Get familiar with this product
What is the published reference for ML-BTS400?
The page lists the catalogue reference configuration for ML-BTS400. Final ratings and interfaces remain subject to the approved project documents.
Are the published dimensions fixed for every project?
No. The dimensions are a documented reference envelope. Final width, depth, height and lineup arrangement depend on the selected devices, ratings, cable interfaces and approved general arrangement.
What evidence can be requested?
A same-model CC4 busbar-trunking report is not included in the reviewed public library. Catalogue values are not a substitute for the report's tested model, configuration and conditions.
